Rs. 3,899.00
Rs. 4,199.00
  • Stock: In Stock
  • Model: DFAWLC-040
  • Weight: 0.90kg
  • Dimensions: 6.00in x 4.00in x 2.00in

Available Options

Digital Fully Automatic Water Level Controller With Low/High Voltage, Over Load, Dry Run protection with Timer - Tank Only

Introduction:

RMG automation proudly announces a brand new product “Digital Fully Automatic Water Level Controller With Low/High Voltage, Over Load, Dry Run protection with Timer ” which satisfies all the needs of the customer with all maximum features incorporated in it. We can describe it as an “All in All” (or) “All in One” product. This product not only controls the motor based on level sensing, but also based on timer settings. It is an easily programmable device and customer can adjust the settings as per their requirements. It is the only product in the market which has Voltmeter, Ammeter and Timer Features. RMG automation strongly assures that this product will be a boon to the customer and reduces their tension.

Attractive LEDs, Digital Display, Product’s gorgeous look, Reasonable and Affordable Price makes customer to purchase our product.

Description:

Digital Fully Automatic Water Level Controller helps to control the motor based on level sensing of water in the tank. Means, motor on when tank empty and motor off when tank is full. It acts as both controller and indicator. Apart from the regular function, this product can be used as OFF delay timer (or) Cyclic Timer. Helps protecting motor from Dry Run, over load and L/H Voltage fluctuations. Also, this Voltmeter and Ammeter settings can be adjusted as per the customer’s site set up. With the set Volt and Current, the product functions wonderfully.

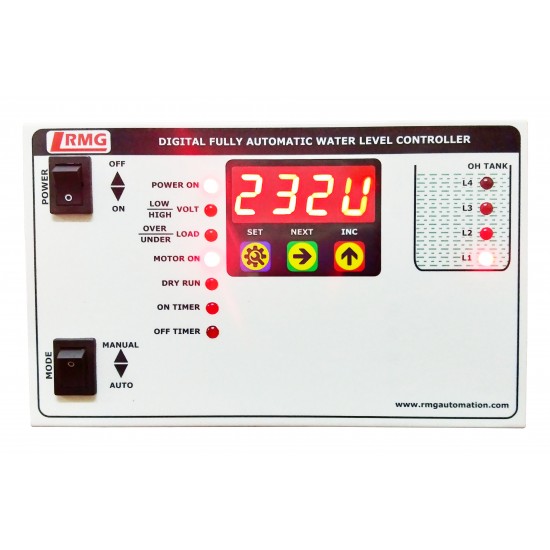

  • Product has a rectangular gorgeous look with the metallic enclosure.
  • Two switches present on left side top and bottom.
    1. Power ON/OFF switch to switch on/off the device
    2. Manual/Auto mode switch for mode selection
  • 7 Visible LEDs are provided to denote Power ON, L/H Volt, Over/Under Load, Motor ON, Dry Run, ON and OFF timers.
  • Large Visible 7 segment display is given to show the settings done.
  • Below the Display, 3 tactile switches with pictorial form are given as input keys for programming the devices.
  • Visually Visible LEDs for the tanks are given On the right side of the device to denote the water tank levels.
  • Just beneath the device, the power cords and sensor outputs are taken out for which a detailed labelling is given along with product code to facilitate the customers during installation. A CT coil is given and it helps to check for dry run.
Working Operation:

Product has to be connected as per the wiring diagram given. Once wiring is done, the following operations are noted in the device.

  • Power ON/OFF switch is used to switch on the device and is denoted by Power ON LED.
  • The device is password protected. By default, the password set is 0000. To change the password, the programming methods is given in the video.
  • When controller in AUTO mode: Water tank LEDs shows the level of water. If, water tank is empty, the LEDs are all off and motor gets ON and when all the Tank LEDs. Are ON, motor is switched OFF.
  • Dry Run Operation: When the motor is in ON condition, and if there is no water flow for 1 minute, motor gets off. Dry Run LED indication will be ON. This function occurs every one hour by default. This reset time can be adjusted in Dry Run Time.
  • Manual Mode: Helps to switch ON the motor manually. In this mode, the motor will be constantly running. By changing it to AUTO mode, the above mentioned auto operation occurs. It is also called as semi-automatic operation.
  • Timer Operation:
    1. This controller can be also used as a Cyclic timer. ON time and OFF time can be set and the motor will be ON for the set time and will be OFF for the set time and the cycle repeats. In case if the tank is full, the cycle stops and motor is Off and the display shows the voltage. The motor starts again only when tank is low.
    2. The product can also be used as a Stop Timer. ON time can be set and motor is ON for the SET time and will be continuously OFF after the SET time is over.
  • Operation of L/H Voltage, O/U Load and Trip time: The desired values can be set for Voltage, Current and Trip time if required. Motor will be in ON condition for the programmed set values. In any condition, if the values goes above or below the set values, motor trips and will be OFF. Based on the Trip time set, motor gets off. If any of these setting are not needed or To Disable Operations – Set the Values as 0.
Features:
  • High quality M.S. Enclosure
  • Visual LED indication for Power ON, Low/High Voltage, Dry run, Motor ON, and for denoting Tank/Sump levels.
  • Adjustable, Easily Programmable settings with 3 simple input keys.
  • Protective features such as Dry Run and L/H voltage, O/U Load, Trip time.
  • Password protected and helps for Authorized usage
  • User friendly and highly robust.
  • Highly Durable and Long Life.
  • High performance.
  • Easy to install
  • Suitable for Any Type of AC motor (Single/Three phase motor - Monoblock, Jet Pump, Submersible,etc.)
  • It supports Magnetic float switch/sensor, Contact type sensor
  • No Electric Shock
  • Advanced Embedded Technology
  • 12 Months Warranty
Uses and Advantages:
  • Prevents overflow and wastage of water.
  • Prevents wastage of power/electricity.
  • Saves our money.
  • Helps to monitor the tank levels along with automatic motor controls.
  • One time investment. Long term satisfaction.
  • No need to depend on manpower.
  • Can be used in anyway.
    1. As a fully automatic level controller
    2. As a stop timer
    3. As a cyclic timer
    4. As a semi-automatic unit.
  • Can be used as a Cyclic Timer when there is low borewell yield. Customer just have to schedule the motor on time and motor off time. Henceforth it reduces their tension
Application:
  • Automatic water level controller is of much used in metro cities, bungalows, industries, hospitals and in luxurious apartments and homes. Use of this product saves water, saves electricity and saves time.
  • Useful in case of bore well to tank set up.
  • Helps in preventing overflow of water from the overhead tank.


Downloads


Operation Manual



Write a review

Please login or register to review
Technical
Input Power Supply Single Phase - AC 220V , Three Phase AC 440V
Internal Voltage 12V DC
Sensor Support Magnetic Float, Contact Type Sensors
Low/High Voltage Cut Off programmable
Dry run Protection Dry run Sensing Time - 90 Seconds, Dry run Reset Time - Programmable.
LED Level Indication Tank LED - 4 Levels Indication.
Power Consumption 5 Watts
Power ON Delay programmable.
Depth of Tank Upto 6 meters
Signalling Distance Upto 300 meters
Type of Liquid Most Liquid
Enclosure Powder Coated Metal Sheet Cabinet
