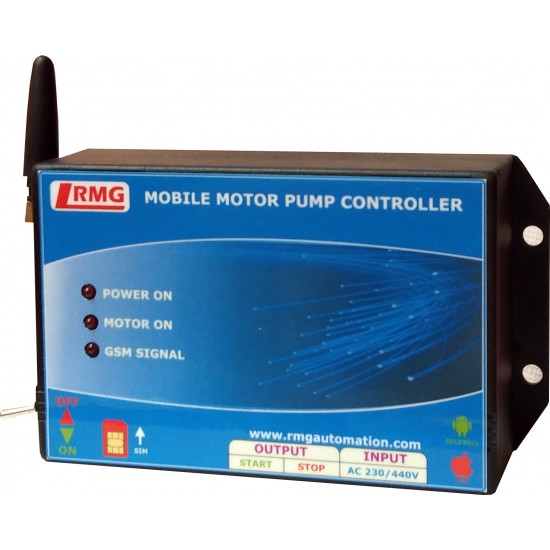

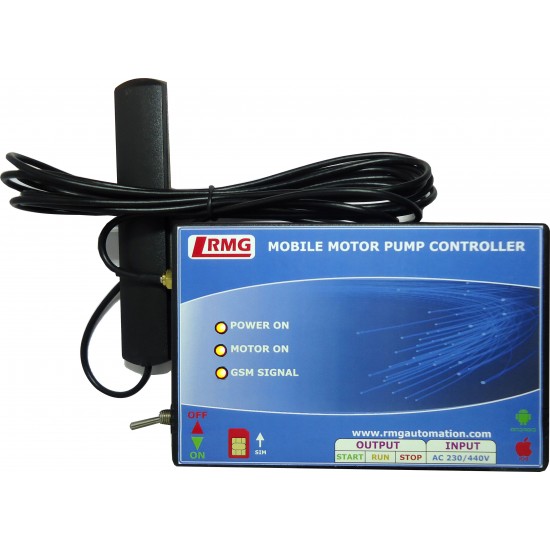

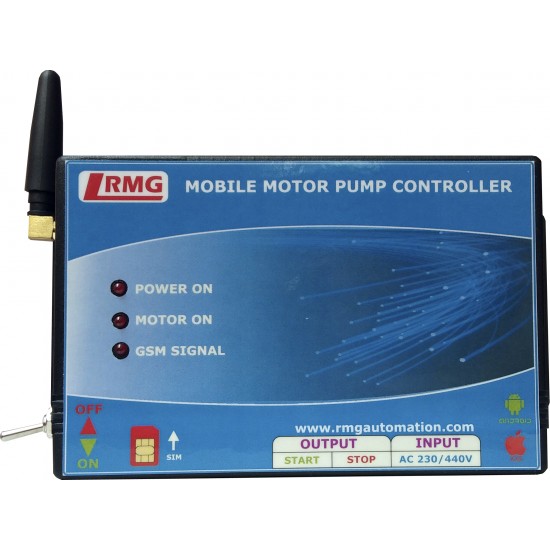

Single / Three Phase GSM Mobile starter for motor pumps through SMS/CALL/Android App
Our GSM Pump Controllers (Mobile Pump Starter) are most unique and specially designed for farmers, agriculturists and industries to operate and monitor remotely located submersible pumps and motors. They can switch ON and switch OFF the motor pumps from their homes or anywhere by using a SMS / CALL / Android Application. It also saves water, time and electricity. Our GSM based mobile pump controller are manufactured with advanced embedded micro controller technology and quality process.
Salient Features:
- User can operate the motor pump from anywhere in the world through CALL / SMS / Android app.
- User is not charged for CALL to control the motor pump.
- GSM Technology, Reliable operation, Worldwide Connectivity.
- Low cost, Quality, Less Maintenance and robust device.
- Suitable for single / three phase motors.
- Supports motors of any HP and any capacity.
- Works with any models of starters.
- Operate with any SIM operator in your region.
- External antenna for better signal output.
- SIM card slot backside of PCB.
- Visible LED indications to know the power, relay (motor on) and GSM network status.
- SMS alerts for motor ON/ motor OFF. Live motor operation status available via SMS.
- Helps to use the existing mobile to operate the device.
- Fully programmable.
- No auxiliary power supply required for controller operation.
- Can enable access to authorized users.
- Microcontroller based advanced embedded technology
- Easy to install.
- Easy to operate.
Application:
- GSM mobile motor starter are being used mostly in agricultural sectors, farm houses and remote locations when power supply is not regular and farmers have to feed water to their fields.
- GSM based water level controller find its applications where water pumps are installed far away from the residential colonies.
- It used in many industries and factories too where the overhead tank and starter locations are far away.
- GSM mobile motor starter is also known as GSM / SMS motor starter controller, GSM Wireless water level controller, Cell phone motor starter and GSM SIM based Remote Starter Control System.
Downloads
User Manual - GSM 3ST |
Frequently Asked Questions
Any network can be used except JIO. See to it that the SIM card has 2G also. Because our product works in 2G spectrum only. Many farmers all over India still use the basic phone with 2G cards. So, manufacturing is done to support all.
Yes you can use a 4G card. But see that it also has 2G in it.
Go to the nearest mobile shop and use the below words –
निकटतम मोबाइल शॉप पर जाएं और नीचे दिए गए शब्दों का उपयोग करें
“I want a SIM card for small phone”.
“मुझे छोटे फोन के लिए सिम कार्ड चाहिए।“
You will surely get a SIM card that has 2G.
आपको एक सिम कार्ड जरूर मिलेगा जिसमें 2 जी है
No, it will not send any SMS when there is power OFF. Because GSM does not have battery back up.
Yes you can connect basic GSM3ST to 3 phase starter. Input AC 230 V or 440V supply can be given to GSM unit. All three lines are not connected here to check single phase fail. If you want single phase fail check, go for advanced model.
Yes, the device is fuse protected. In case, if fuse fails, replace them. The rating of the fuse is 300mA.
Always follow the sticker on the top of SIM slot. See the sides and cuts and then insert. If you have more clarification, what’s app 9940594413.
Send the following SMS to GSM SIM card,
91XXXXXXXXXX, (Eg. 911234567890)
Send the following SMS to GSM SIM card for other 4 users,
92XXXXXXXXXX, (Eg. 924789012345)
93XXXXXXXXXX, (Eg. 934902345617)
94XXXXXXXXXX, (Eg. 943678901234)
95XXXXXXXXXX, (Eg. 952012345678)
Enable Auto Reply, Send SMS command given below,
81
For Registered user access, send SMS command given below,
71
Through call – Dial the GSM SIM number
a. Long ring – Motor ON
b. Short ring – Motor OFF
Through SMS – SMS commands given below
a. Motor ON command – 11
b. Motor OFF command – 10
Through Android Mobile App
All the 5 users can operate your mobile starter from anywhere.
User 1 is the Farmer / Primary User.
User 2, User 3, User 4 and User 5 are relatives of Farmer / Secondary Users.
Below is the YOUTUBE link for configuration and App usage.
https://www.youtube.com/watch?v=RPNVuUDFte8Send the following command to enable AUTO ON. This command helps to switch ON the motor pump when the power resumes. The command is,
14
Send the following command to disable AUTO ON. By send this command the GSM unit will not switch ON the motor pump when the power resumes. The command is,
13
Send SMS command to know current status of motor whether it is ON/OFF,
12
Check for the SMS balance and validity.
Check it you have enable AUTO REPLY command 81
Check if the SIM card is 4G. If so, auto reply will not come
Yes, In case, your starter is Single Phase submersible(Multi-capacitor Starter) Starter, add an additional contactor.
Yes, you can use it
Technical | |
Input Power Supply | Single Phase - AC 220V , Three Phase AC 440V |
Internal Voltage | 12V DC |
GSM | Band - Quad-Band 850/900/1800/1900 MHz |
Relay Ratings | 10A / 250V AC relay |
Power Consumption | 15 Watts |
Power ON Delay | 10 Seconds |
Enclosure | Plastic cabinet |
Diamensions | 15x4x8.5 cm |
