Rs. 3,999.00
Rs. 4,499.00
  • Stock: In Stock
  • Model: DFAWLC-043
  • Weight: 0.90kg
  • Dimensions: 6.00in x 4.00in x 2.00in

Available Options

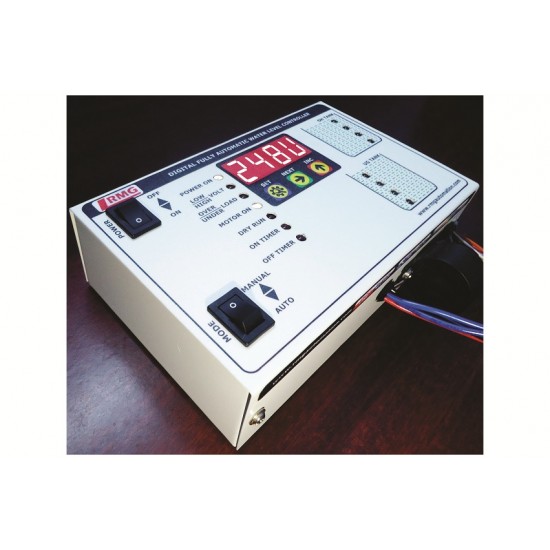

Digital Fully Automatic Water Level Controller With Low/High Voltage, Over Load, Dry Run protection with Timer - Tank & Sump

These controllers do not need operator for performing start and stop operations. Fully automatic water level controller switches ON the motor when the water level in the tank becomes low (desired prefixed lower limit). It switches OFF the motor once the tank becomes full (prefixed higher limit). The additional feature of this model is 4 LED indication to know the level of water in the tank.

Product Description:

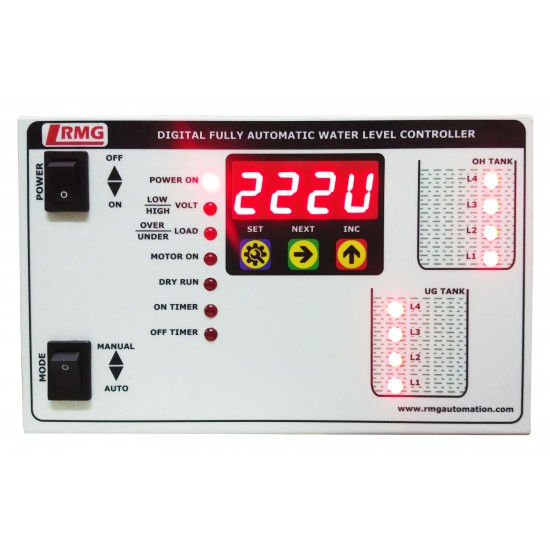

  • Power ON/OFF switch: This switch is provided at the left side to switch ON or switch OFF the controller unit.
  • Power ON LED: It indicates the power supply to the unit.
  • Power ON Delay: User can set maximum of 999 Seconds.
  • Low/High Voltage LED: It indicates Low/High Voltage power supply. Motor pump gets switched off and is protected from such condition.
  • Over/Under Load LED: It indicates Over/Under Load. Motor pump gets switched off and is protected from such condition.
  • Cyclic Timer: It has ON Time & OFF Time options. Duration: Maximum 99 Hrs and 59 Minutes.
  • Dry Run LED: It indicates the dry run of the motor pump. If there is no water flow in the inline pipe of the overhead tank for 1 minute, motor gets switched OFF preventing it from Dry Run.
  • Motor ON LED: It indicates the motor ON condition.
  • Tank Level Indication: 25%, 50%, 75% and 100%.
  • Password Protected  Menus. The above settings can be customized as per users need.
  • Seven Segment Display:  Attractive display. for voltage, current, cyclic timer, power on delay, dry run time, password settings and live data.
  • Manual/Auto mode switch:
  1. Auto mode: In AUTO mode, motor will automatically switch ON when the water level in the tank is low and automatically switch OFF when the tank becomes full.
  2. Manual Mode: Helps to switch ON the motor manually. In this mode, the motor will be constantly running.
  3. Semi-Automatic(Manual ON and Auto OFF) fucntion is acheived by changing this switch position from Manual mode to Auto mode.

Salient Features :

  • Visual indication for Power ON, Low/High Voltage, Dry run, Motor ON,  Four Level for Tank.
  • Long Life
  • Easy to install
  • Suitable for Any Type of AC motor (Single/Three phase motor - Monoblock, Jet Pump, Submersible,etc.)
  • It supports Magnetic float switch/sensor, Contact type sensor
  • No Electric Shock
  • Advanced Embedded Technology
  • 12 Months Warranty

Application:

  • Automatic water level controller is of much used in metro cities, bungalows, industries, hospitals and in luxurious apartments and homes. Use of this product saves water, saves electricity and saves time.
  • Useful in case of bore well to tank set up.
  • Helps in preventing overflow of water from the overhead tank.

  • Low/High Voltage LED: It indicates Low/High Voltage power supply. Motor pump gets switched off and is protected from such condition.

Write a review

Please login or register to review
Technical
Input Power Supply Single Phase - AC 220V , Three Phase AC 440V
Internal Voltage 12V DC
Sensor Support Magnetic Float, Contact Type Sensors
Low/High Voltage Cut Off programmable
Dry run Protection dry run sensing time 90 Seconds Dry run reset time programmable upto 100hrs
LED Level Indication Tank LED - 4 Levels Indication.
Power Consumption 5 Watts
Power ON Delay programmable upto 999 Seconds
Depth of Tank Upto 6 meters
Signalling Distance Upto 300 meters
Type of Liquid Most Liquid
Enclosure Powder Coated Metal Sheet Cabinet
